| 详细说明: |

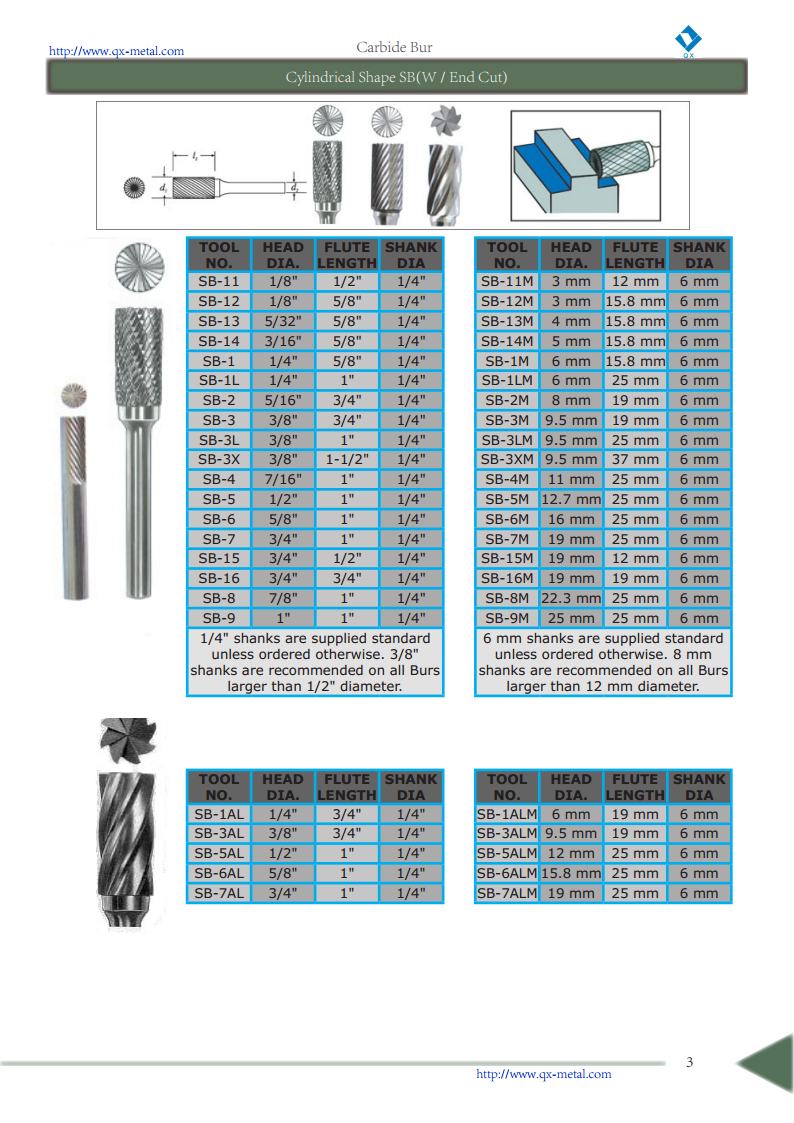

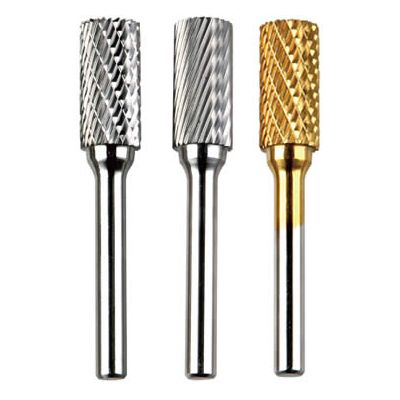

圆柱B型旋转锉规格 SB
英制
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SB-11 |
1/8" |
1/2" |
1/4" |
| SB-12 |
1/8" |
5/8" |
1/4" |
| SB-13 |
5/32" |
5/8" |
1/4" |
| SB-14 |
3/16" |
5/8" |
1/4" |
| SB-1 |
1/4" |
5/8" |
1/4" |
| SB-1L |
1/4" |
1" |
1/4" |
| SB-2 |
5/16" |
3/4" |
1/4" |
| SB-3 |
3/8" |
3/4" |
1/4" |
| SB-3L |
3/8" |
1" |
1/4" |
| SB-3X |
3/8" |
1-1/2" |
1/4" |
| SB-4 |
7/16" |
1" |
1/4" |
| SB-5 |
1/2" |
1" |
1/4" |
| SB-6 |
5/8" |
1" |
1/4" |
| SB-7 |
3/4" |
1" |
1/4" |
| SB-15 |
3/4" |
1/2" |
1/4" |
| SB-16 |
3/4" |
3/4" |
1/4" |
| SB-8 |
7/8" |
1" |
1/4" |
| SB-9 |
1" |
1" |
1/4" |
标准柄长1/4" ,可根据需要定制
头部尺寸大于1/2" 时,推荐使用3/8" 柄直径 |
公制
圆柱B型旋转锉规格 SB
| TOOL NO. |
HEAD DIA. |
FLUTE LENGTH |
SHANK DIA |
| SB-11M |
3 mm |
12 mm |
6 mm |
| SB-12M |
3 mm |
15.8 mm |
6 mm |
| SB-13M |
4 mm |
15.8 mm |
6 mm |
| SB-14M |
5 mm |
15.8 mm |
6 mm |
| SB-1M |
6 mm |
15.8 mm |
6 mm |
| SB-1LM |
6 mm |
25 mm |
6 mm |
| SB-2M |
8 mm |
19 mm |
6 mm |
| SB-3M |
9.5 mm |
19 mm |
6 mm |
| SB-3LM |
9.5 mm |
25 mm |
6 mm |
| SB-3XM |
9.5 mm |
37 mm |
6 mm |
| SB-4M |
11 mm |
25 mm |
6 mm |
| SB-5M |
12.7 mm |
25 mm |
6 mm |
| SB-6M |
16 mm |
25 mm |
6 mm |
| SB-7M |
19 mm |
25 mm |
6 mm |
| SB-15M |
19 mm |
12 mm |
6 mm |
| SB-16M |
19 mm |
19 mm |
6 mm |
| SB-8M |
22.3 mm |
25 mm |
6 mm |
| SB-9M |
25 mm |
25 mm |
6 mm |
标准柄为6 mm ,可根据需要定制
头部尺寸大于12mm 时,推荐使用8mm 柄直径 |
|
|
