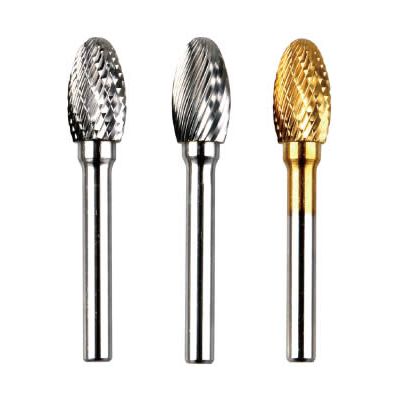

Product name : Oval Carbide Burs
Item : SE
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

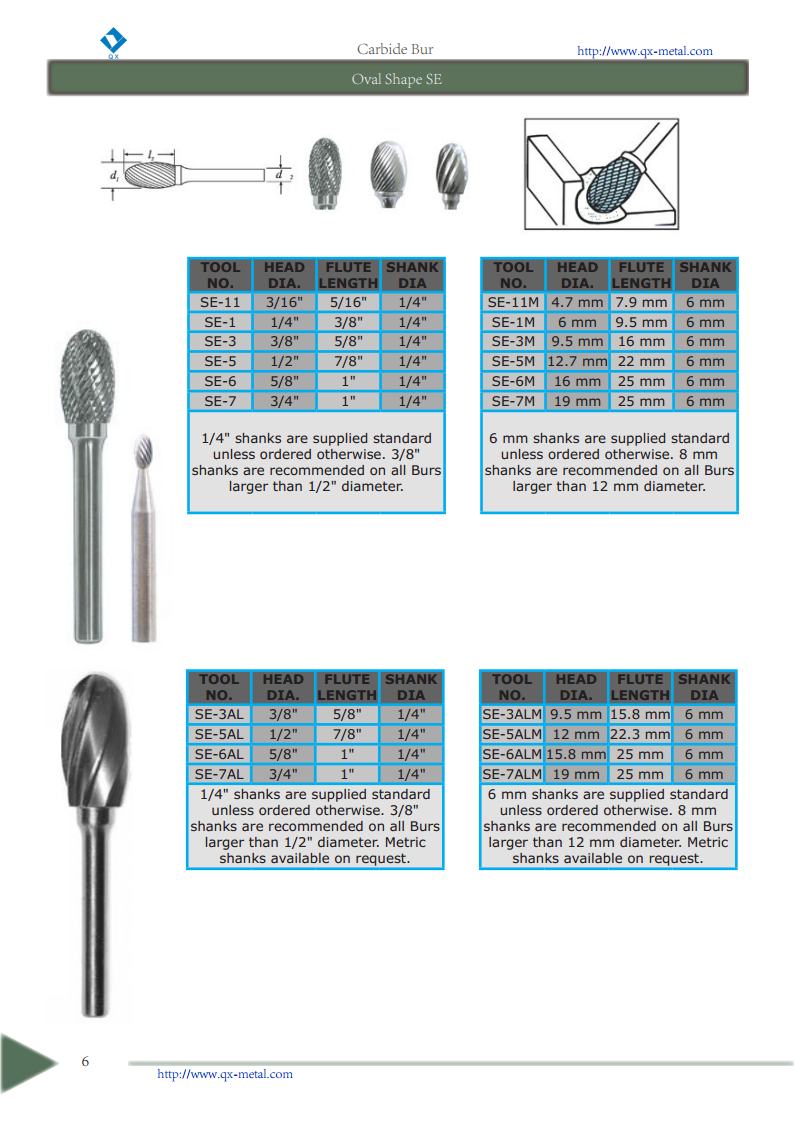

SE Carbide Burrs

Oval Shapne-Inch Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA
SE-11 3/16" 5/16" 1/4"
SE-1 1/4" 3/8" 1/4"
SE-3 3/8" 5/8" 1/4"
SE-5 1/2" 7/8" 1/4"
SE-6 5/8" 1" 1/4"
SE-7  3/4" 1" 1/4"

1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter.

Oval Shapne-ISO Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA
SE-11M 4.7 mm 7.9 mm 6 mm
SE-1M 6 mm 9.5 mm 6 mm
SE-3M 9.5 mm 16 mm 6 mm
SE-5M 12.7 mm 22 mm 6 mm
SE-6M 16 mm 25 mm 6 mm
SE-7M 19 mm 25 mm 6 mm

6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks recommended for Burs larger than 12 mm diameter.

Oval Carbide Burs
