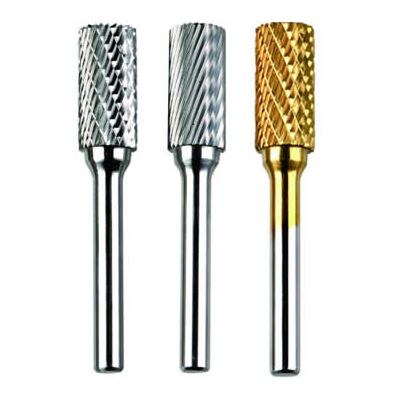

Product name : Shape A-Cylindrical

Item : SA

Enlarge Image

Back

←[Previous Product]

Details:

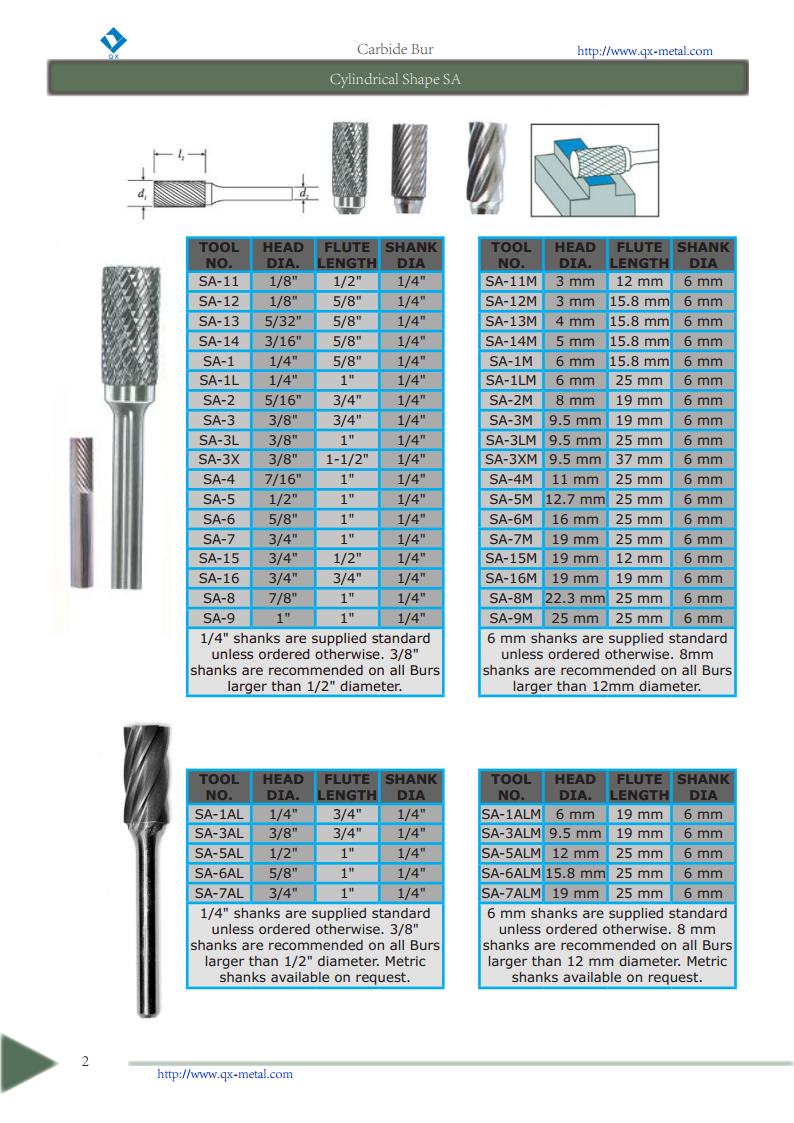

Shape A-Cylindrical

Inch Sizes


TOOL NO.	HEAD DIA.	FLUTE LENGTH	SHANK DIA
SA-11	1/8"	1/2"	1/4"
SA-12	1/8"	5/8"	1/4"
SA-13	5/32"	5/8"	1/4"
SA-14	3/16"	5/8"	1/4"
SA-1	1/4"	5/8"	1/4"
SA-1L	1/4"	1"	1/4"
SA-2	5/16"	3/4"	1/4"
SA-3	3/8"	3/4"	1/4"
SA-3L	3/8"	1"	1/4"
SA-3X	3/8"	1-1/2"	1/4"
SA-4	7/16"	1"	1/4"
SA-5	1/2"	1"	1/4"
SA-6	5/8"	1"	1/4"
SA-7	3/4"	1"	1/4"
SA-15	3/4"	1/2"	1/4"
SA-16	3/4"	3/4"	1/4"
SA-8	7/8"	1"	1/4"
SA-9	1"	1"	1/4"
1/4" shanks are supplied standard unless ordered otherwise. 3/8" shanks are recommended on all Burs larger than 1/2" diameter.


TOOL NO.	HEAD DIA.	FLUTE LENGTH	SHANK DIA
SA-11M	3 mm	12 mm	6 mm
SA-12M	3 mm	15.8 mm	6 mm
SA-13M	4 mm	15.8 mm	6 mm
SA-14M	5 mm	15.8 mm	6 mm
SA-1M	6 mm	15.8 mm	6 mm
SA-1LM	6 mm	25 mm	6 mm
SA-2M	8 mm	19 mm	6 mm
SA-3M	9.5 mm	19 mm	6 mm
SA-3LM	9.5 mm	25 mm	6 mm
SA-3XM	9.5 mm	37 mm	6 mm
SA-4M	11 mm	25 mm	6 mm
SA-5M	12.7 mm	25 mm	6 mm
SA-6M	16 mm	25 mm	6 mm
SA-7M	19 mm	25 mm	6 mm
SA-15M	19 mm	12 mm	6 mm
SA-16M	19 mm	19 mm	6 mm
SA-8M	22.3 mm	25 mm	6 mm
SA-9M	25 mm	25 mm	6 mm
6 mm shanks are supplied standard unless ordered otherwise. 8mm shanks are recommended on all Burs larger than 12mm diameter.
