Products > Carbide Burs > Rotary Files|Carbide Burs > Round Nose Tree Shape Carbide Burs

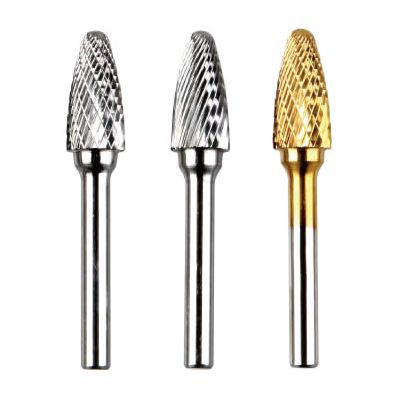

Product name : Round Nose Tree Shape Carbide Burs
Item : Carbide Burr
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

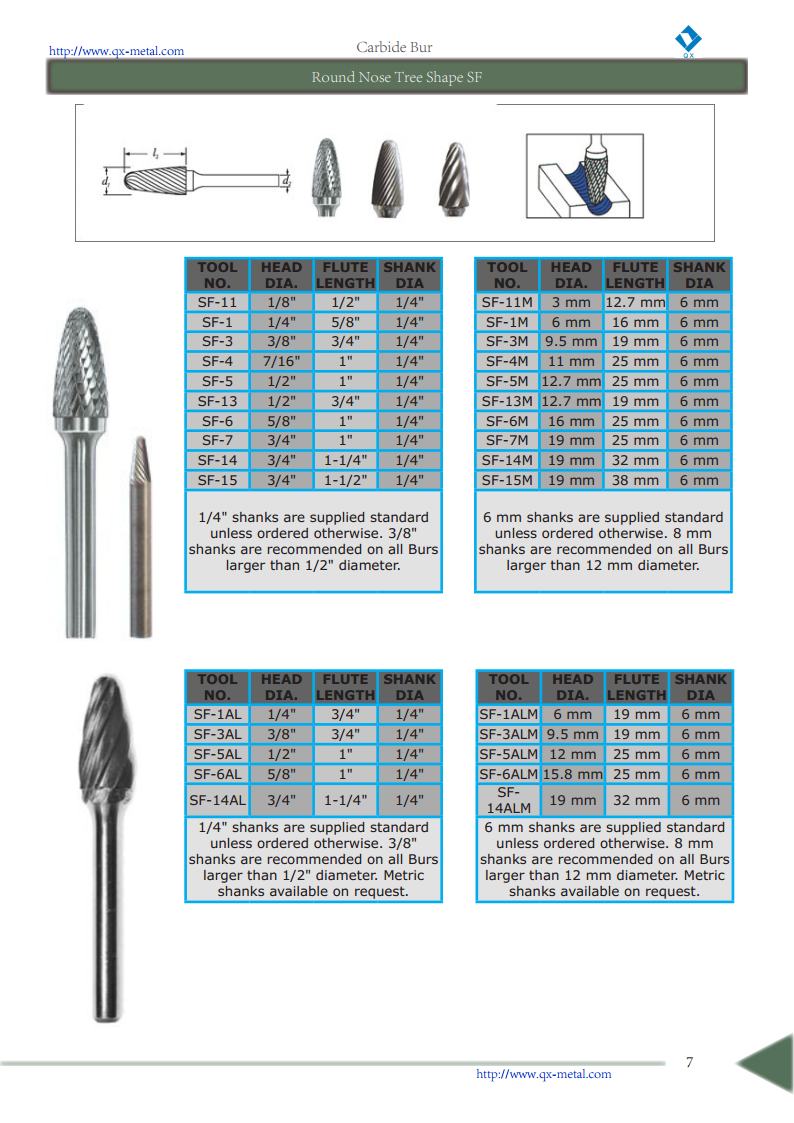

SF Carbide Burrs

Round Nose Tree Shape-Inch Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA
SF-11 1/8" 1/2" 1/4"
SF-1 1/4" 5/8" 1/4"
SF-3 3/8" 3/4" 1/4"
SF-4 7/16" 1" 1/4"
SF-5 1/2" 1" 1/4"
SF-13 1/2" 3/4" 1/4"
SF-6 5/8" 1" 1/4"
SF-7 3/4" 1" 1/4"
SF-14 3/4" 1-1/4" 1/4"
SF-15 3/4" 1-1/2" 1/4"

1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter.


Round Nose Tree Shape-ISO Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA
SF-11M 3 mm 12.7 mm 6 mm
SF-1M 6 mm 16 mm 6 mm
SF-3M 9.5 mm 19 mm 6 mm
SF-4M 11 mm 25 mm 6 mm
SF-5M 12.7 mm 25 mm 6 mm
SF-13M 12.7 mm 19 mm 6 mm
SF-6M 16 mm 25 mm 6 mm
SF-7M 19 mm 25 mm 6 mm
SF-14M 19 mm 32 mm 6 mm
SF-15M 19 mm 38 mm 6 mm

6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.

Round Nose Tree Shape Carbide Burs
