Products > Carbide Burs > Rotary Files|Carbide Burs > Cone Shape Carbide Burs

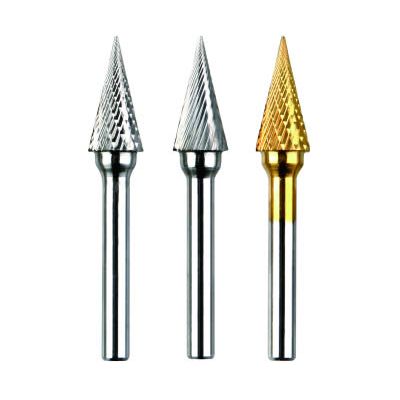

Product name : Cone Shape Carbide Burs
Item : SM
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
SM Carbide Burrs

Cone Shape-Inch Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA. INCLUDED ABGLE
SM-1 1/4" 1/2" 1/4" 22°
SM-2 1/4" 3/4" 1/4" 14°
SM-3 1/4" 1" 1/4" 10°
SM-4 3/8" 5/8" 1/4" 28°
SM-5 1/2" 7/8" 1/4" 28°
SM-6 5/8" 1" 1/4" 31°
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter.

Cone Shape-ISO Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH INCLUDED ABGLE
SM-1M 6 mm 12.7 mm 22°
SM-2M 6 mm 19 mm 14°
SM-3M 6 mm 25 mm 10°
SM-4M 9.5 mm 16 mm 28°
SM-5M 12.7 mm 22 mm 28°
SM-6M 16 mm 25 mm 31°
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.

  Cone Shape Carbide Burs
