Products > Carbide Burs > Rotary Files|Carbide Burs > Pointed Tree Shape Carbide Burs

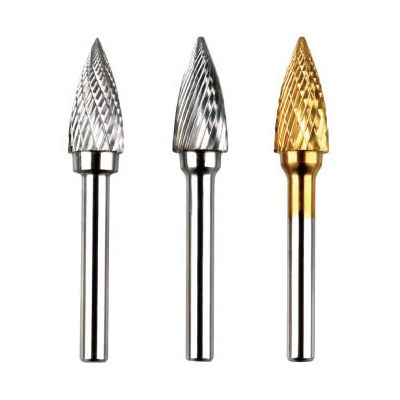

Product name : Pointed Tree Shape Carbide Burs
Item : SG
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

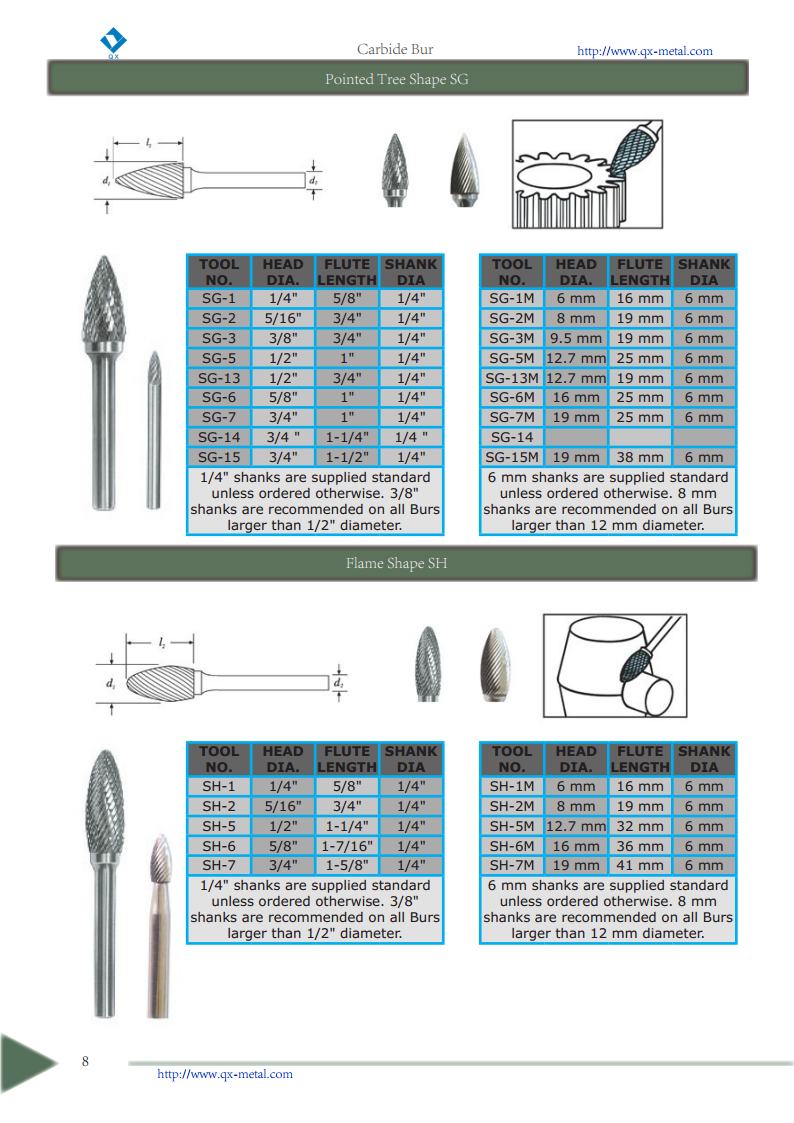

SG Carbide Burrs

Pointed Tree Shape-Inch Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA
SG-1 1/4" 5/8" 1/4"
SG-2 5/16" 3/4" 1/4"
SG-3 3/8" 3/4" 1/4"
SG-5 1/2" 1" 1/4"
SG-13 1/2" 3/4" 1/4"
SG-6 5/8" 1" 1/4"
SG-7 3/4" 1" 1/4"
SG-14 3/4 " 1-1/4" 1/4 "
SG-15 3/4" 1-1/2" 1/4"
1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter.

Pointed Tree Shape-ISO Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA
SG-1M 6 mm 16 mm 6 mm
SG-2M 8 mm 19 mm 6 mm
SG-3M 9.5 mm 19 mm 6 mm
SG-5M 12.7 mm 25 mm 6 mm
SG-13M 12.7 mm 19 mm 6 mm
SG-6M 16 mm 25 mm 6 mm
SG-7M 19 mm 25 mm 6 mm
SG-14
SG-15M 19 mm 38 mm 6 mm
6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.

Pointed Tree Shape Carbide Burs
