Products > Carbide Burs > Rotary Files|Carbide Burs > Cylindrical Ball with radius

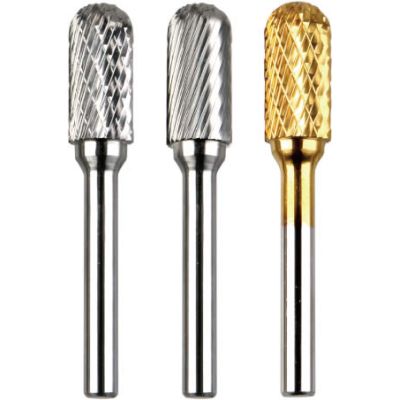

Product name : Cylindrical Ball with radius
Item : SC
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

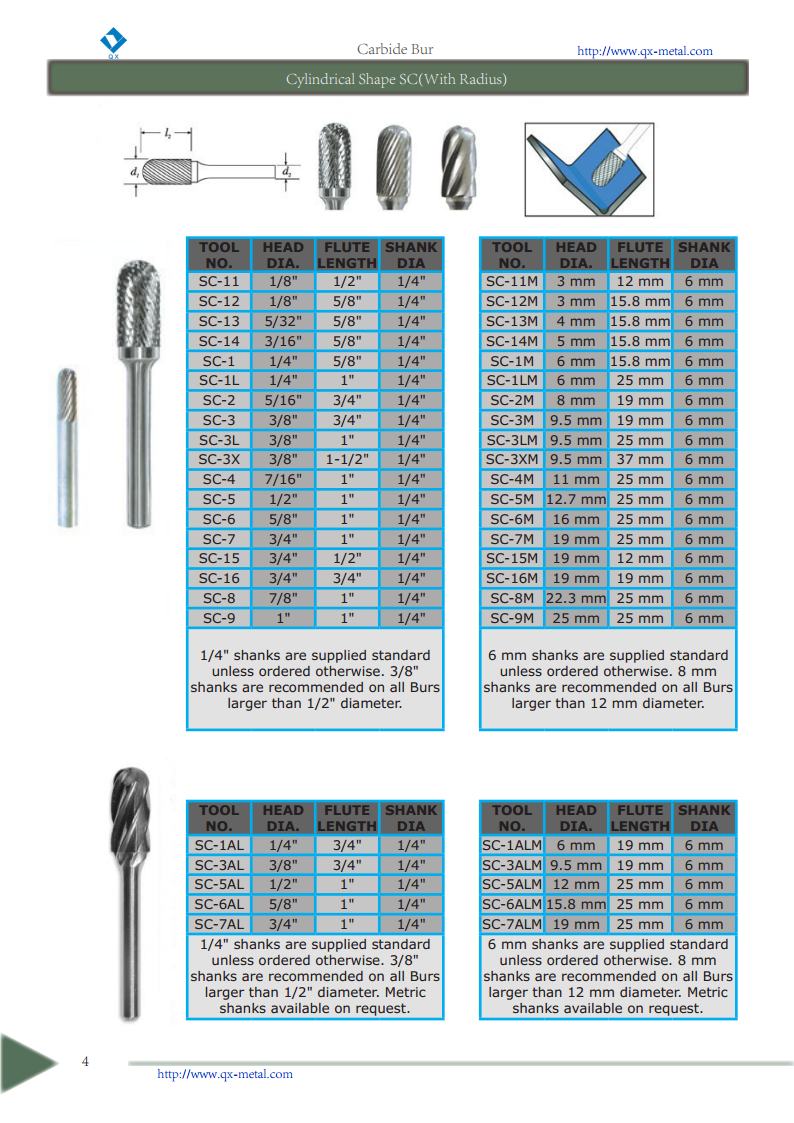

SC Carbide Burrs

Cylindrical Ball with radius-Inch Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA
SC-11 1/8" 1/2" 1/4"
SC-12 1/8" 5/8" 1/4"
SC-13 5/32" 5/8" 1/4"
SC-14 3/16" 5/8" 1/4"
SC-1   1/4" 5/8" 1/4"
SC-1L 1/4" 1" 1/4"
SC-2 5/16" 3/4" 1/4"
SC-3 3/8" 3/4" 1/4"
SC-3L 3/8" 1" 1/4"
SC-3X 3/8" 1-1/2" 1/4"
SC-4 7/16" 1" 1/4"
SC-5 1/2" 1" 1/4"
SC-6 5/8" 1" 1/4"
SC-7 3/4" 1" 1/4"
SC-15 3/4" 1/2" 1/4"
SC-16 3/4" 3/4" 1/4"
SC-8 7/8" 1" 1/4"
SC-9 1" 1" 1/4"

1/4" shanks are supplied standard unless ordered otherwise.
3/8" shanks are recommended on all Burs larger than 1/2" diameter.

Cylindrical Ball with radius-ISO Sizes

TOOL NO. HEAD DIA. FLUTE LENGTH SHANK DIA
SC-11M 3 mm 12 mm 6 mm
SC-12M 3 mm 15.8 mm 6 mm
SC-13M 4 mm 15.8 mm 6 mm
SC-14M 5 mm 15.8 mm 6 mm
SC-1M 6 mm 15.8 mm 6 mm
SC-1LM 6 mm 25 mm 6 mm
SC-2M 8 mm 19 mm 6 mm
SC-3M 9.5 mm 19 mm 6 mm
SC-3LM 9.5 mm 25 mm 6 mm
SC-3XM 9.5 mm 37 mm 6 mm
SC-4M 11 mm 25 mm 6 mm
SC-5M 12.7 mm 25 mm 6 mm
SC-6M 16 mm 25 mm 6 mm
SC-7M 19 mm 25 mm 6 mm
SC-15M 19 mm 12 mm 6 mm
SC-16M 19 mm 19 mm 6 mm
SC-8M 22.3 mm 25 mm 6 mm
SC-9M 25 mm 25 mm 6 mm

6 mm shanks are supplied standard unless ordered otherwise.
8 mm shanks are recommended on all Burs larger than 12 mm diameter.

Cylindrical Ball Carbide Burs
